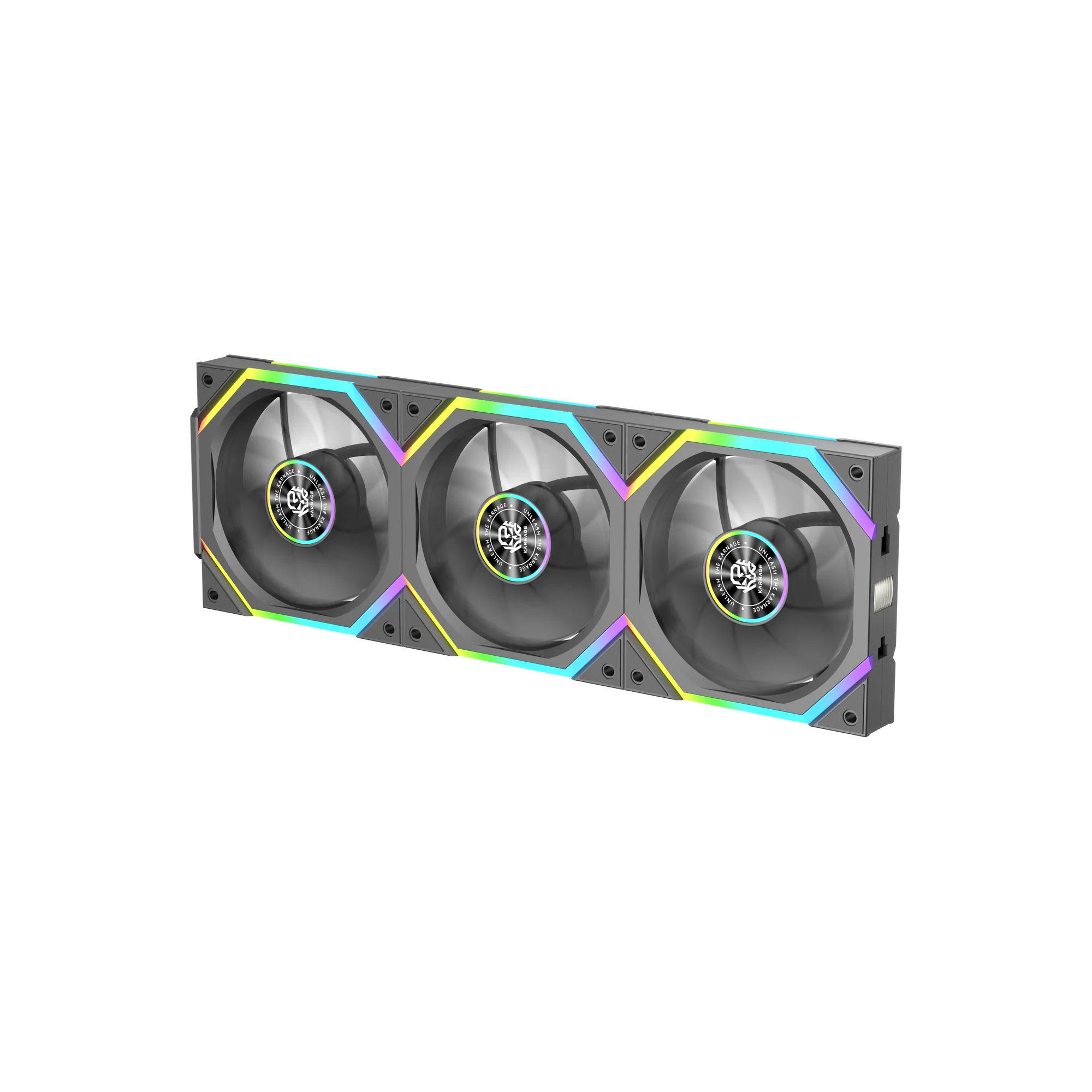

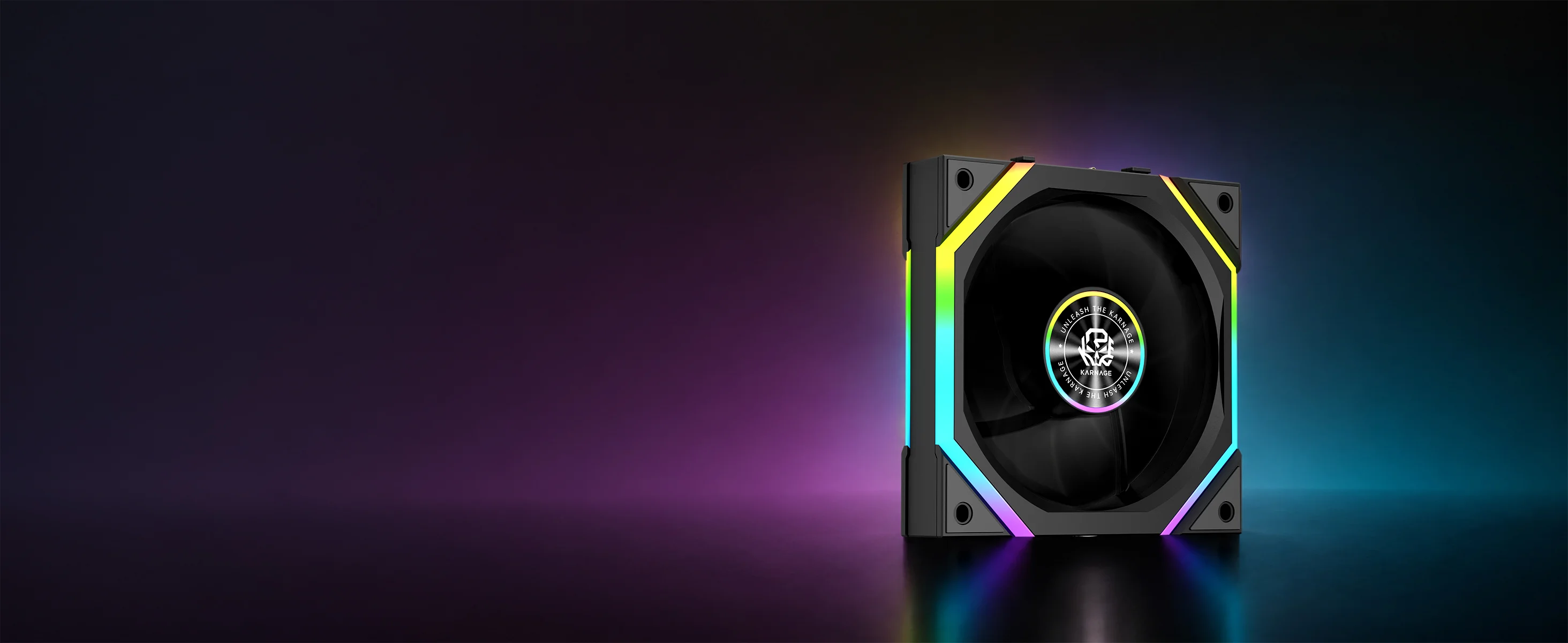

Ignite V3 is supplied as a three-fan set (Model No.: KNG-CF-63-B), while Ignite is supplied as a single-fan set (Model No.: KNG-CF-36-B). Both models share the identical high-performance 120 × 120 × 25 mm fan technology, hydraulic bearings, 5V ARGB lighting, and modular interlocking system.

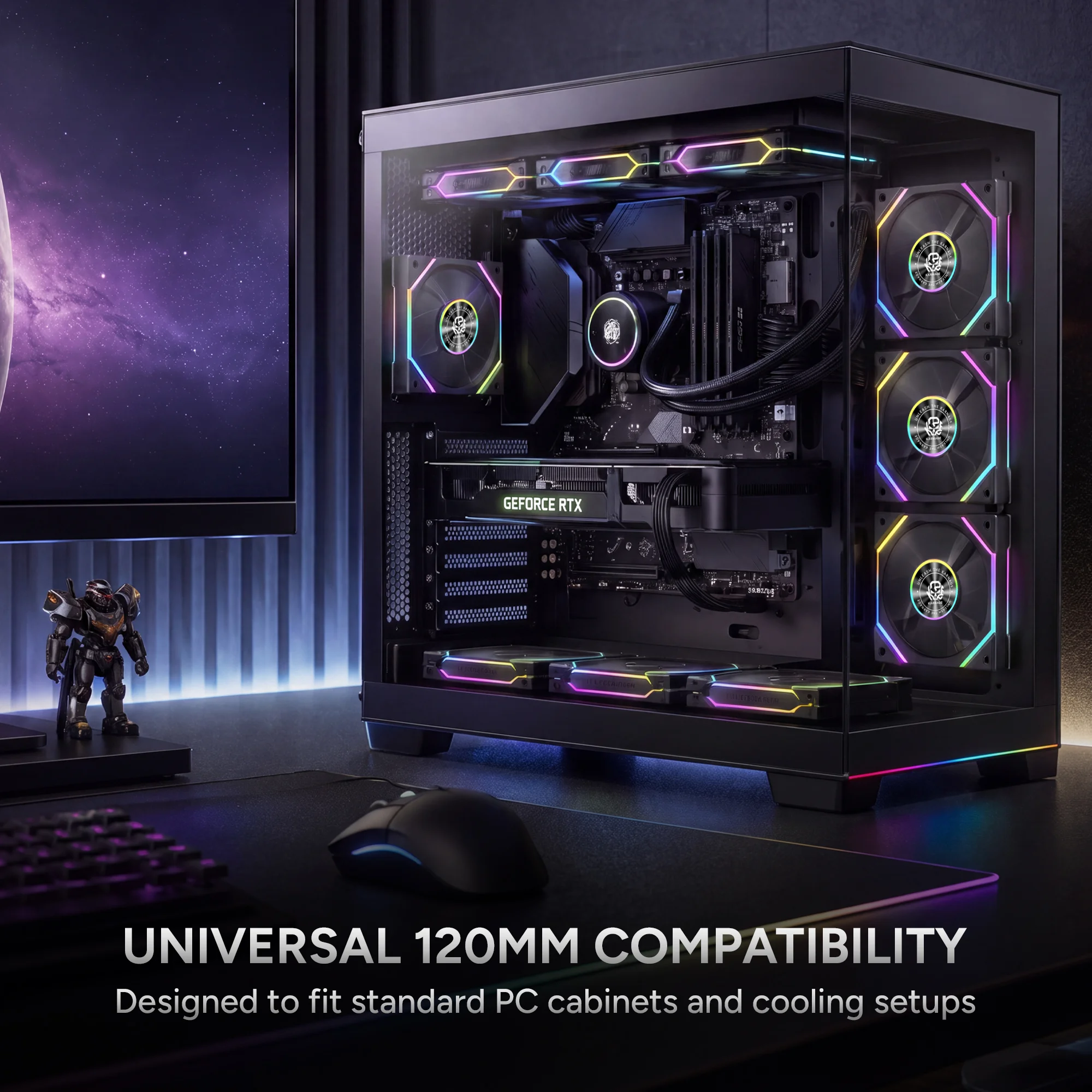

Connect the three fans using the built-in slide-and-lock interlocking mechanism, align the assembled 360 mm set with three adjacent 120 mm mounting positions in your cabinet, and secure the frame using the included screws.

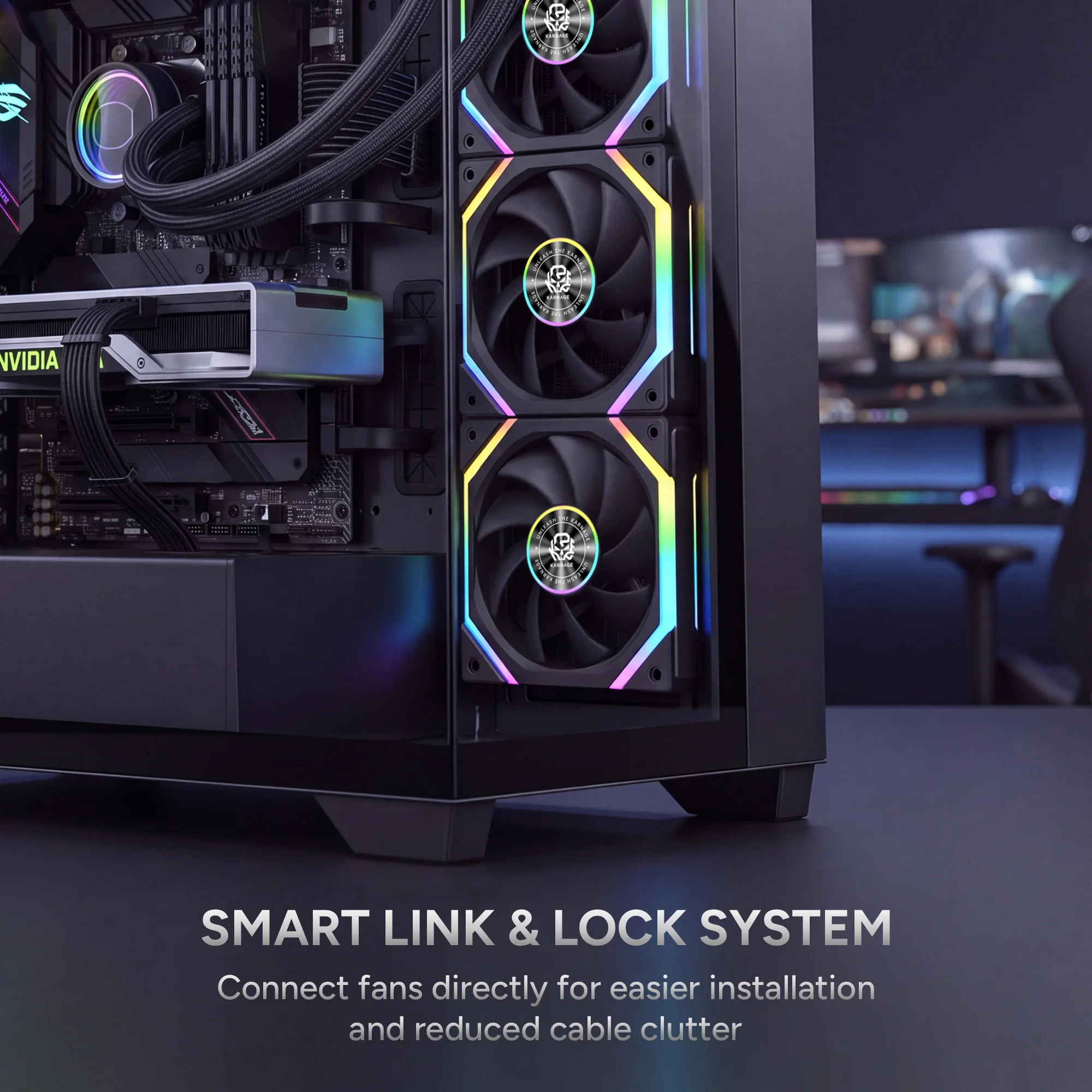

The interlocking system connects adjacent compatible Ignite fans directly via side-mounted pin connectors, transmitting power and ARGB signals across all fans so the entire set uses only one primary cable cluster, drastically reducing case cable clutter.

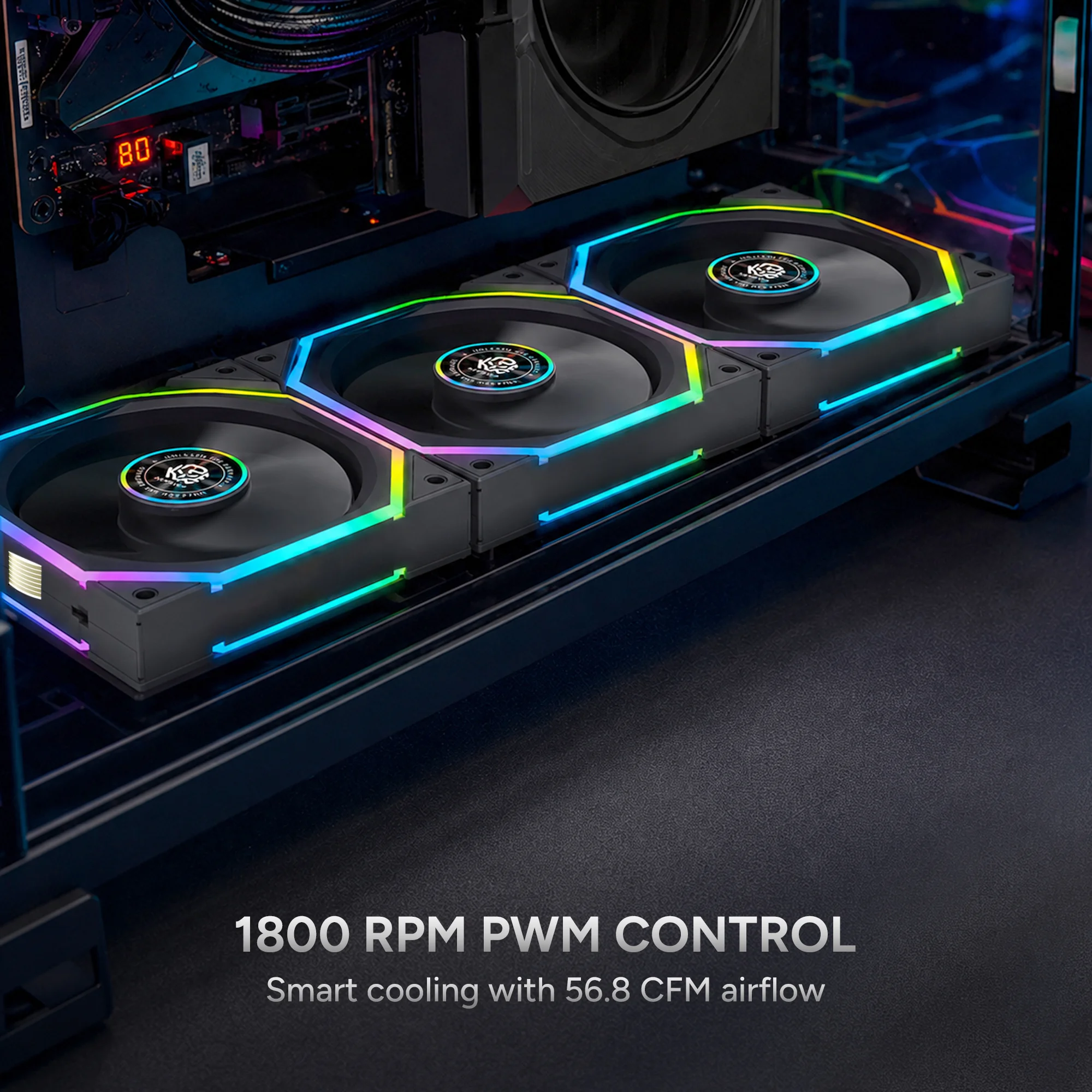

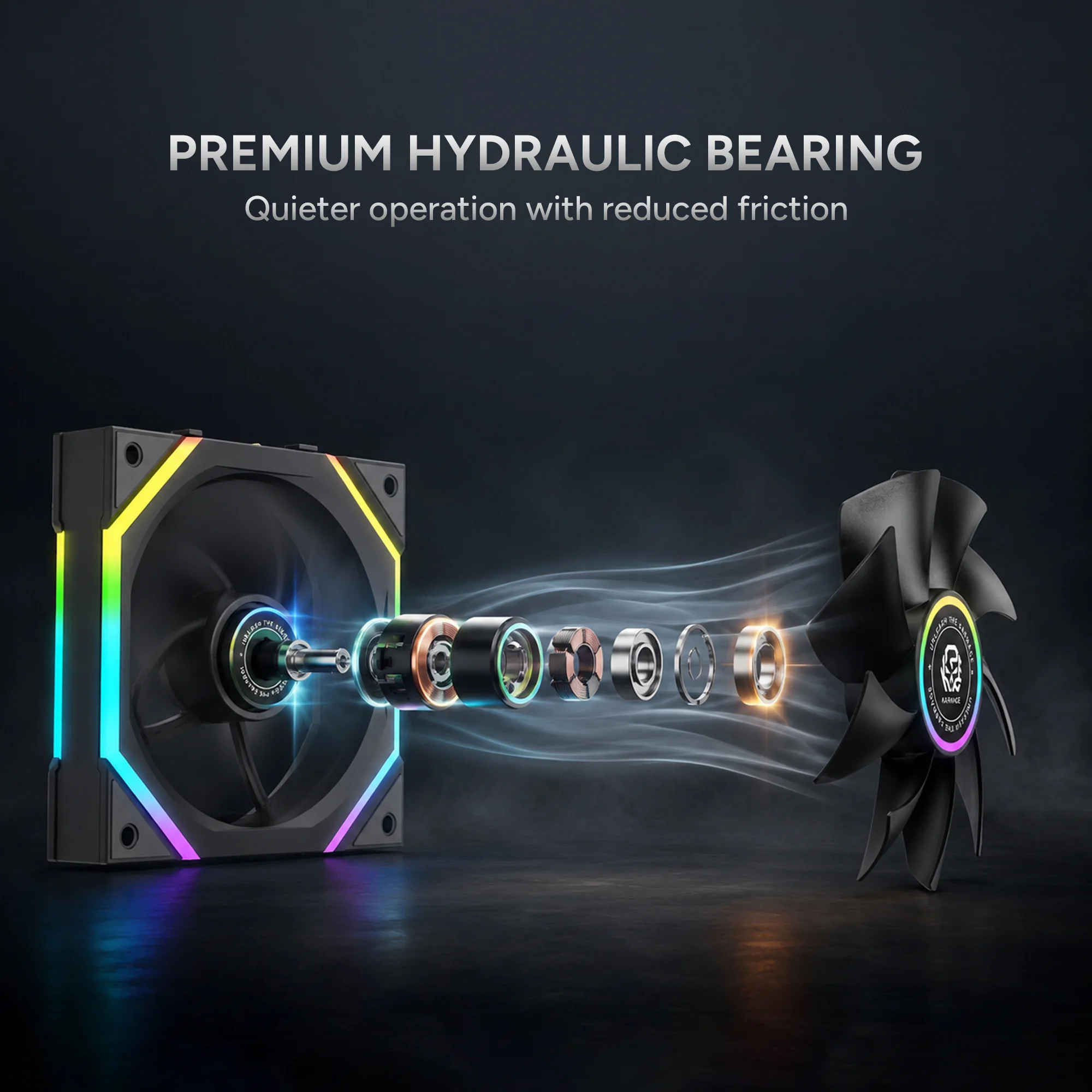

Ignite V3 fans operate between 800 and 1800 RPM through 4-pin PWM control, delivering up to 56.8 CFM of focused airflow per fan with quiet hydraulic bearings.
The fan motor operates at 12V via a 4-pin PWM header, and the ARGB lighting operates at 5V via a 3-pin ARGB header. Caution: Do not connect the 3-pin 5V ARGB cable to a 4-pin 12V RGB header, as this will damage the LEDs.
Yes. Compatible fans can be carefully separated and mounted individually if your chassis layout requires separate fan positions, provided each position is connected to proper power and ARGB headers.

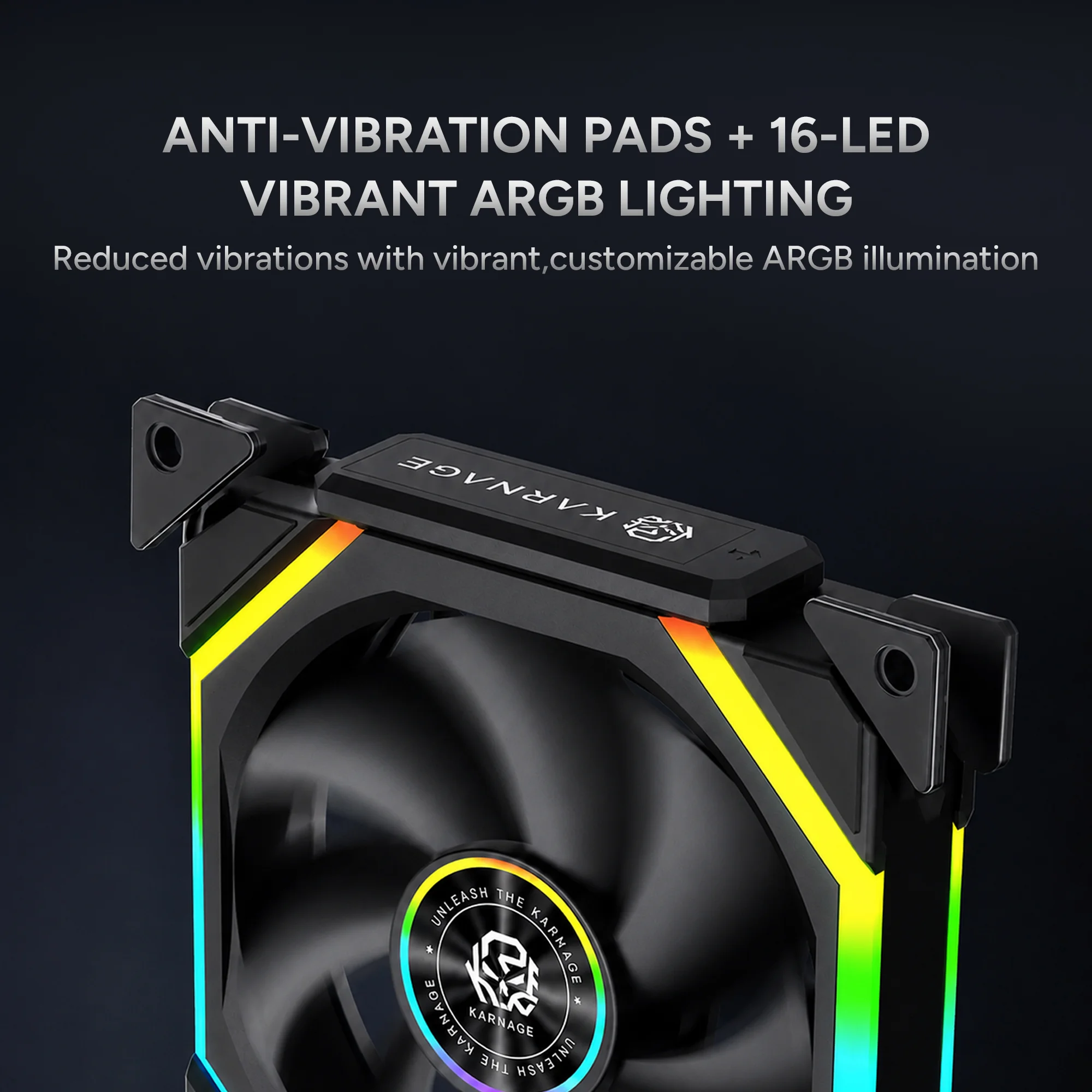

Yes. Standard 120 mm fan mounting screws are included, and integrated rubber pads on the mounting corners absorb vibrations to ensure quiet operation.
Find all the documentation and support options we have available to get this product up and running quickly.
